Description
Product data：
| Material | Stainless steel |
| Performance | corrosion resistance |
| Uses | submersible pump |
| Drive method | hydraulic |
| Delivery medium | clean water pump |
| Pump shaft position | horizontal |
| Impeller structure | closed impeller |
| Impeller suction method | single suction |
| Flow | 190 (m3 / h) |
| Head | 120 (m) |
| Inhalation caliber | ≥6 (INCH) |
| Exhaust diameter | 6 (INCH) |
| Structural principle | axially split pump |
| Series | multistage |
| Weight | 30 (kg) |
| Voltage | 540 (V) |
| Power | 25 (KW) |
| Photovoltaic power | 350W * 105 = 36750w |
| Photovoltaic voltage | 540V |
product details
Advantage solar water pump:
1. With high efficiency permanent magnetic motor, efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by solar panel, battery as well as AC electric
3. Over-load protection, under-load protection, lock-rotor protection, thermal protection
4. With MPPT function
5. Much longer life than normal DC water pump
product picture
How to estimate the lift?

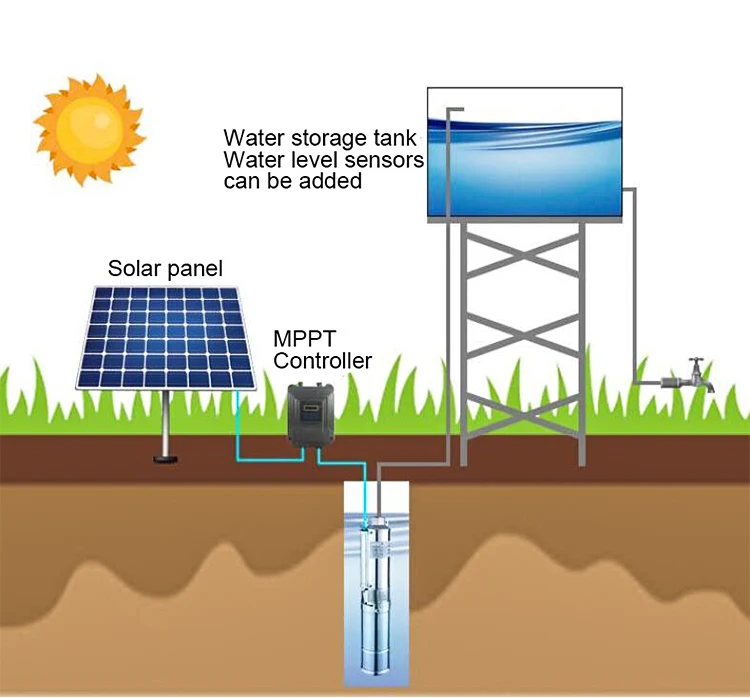

usage
